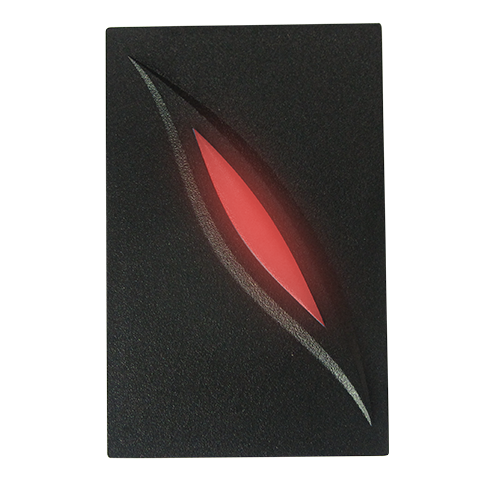

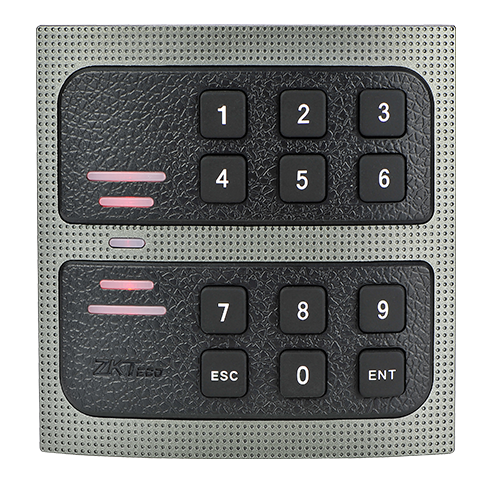

RS485 is currently a widely used communication interface in data acquisition and control applications where multiple nodes communicate with each other. RS485 is also the most versatile communcation standard in the standard series defined by the EIA. In circumstances which require to use multiple readers, RS485 communication shows how it is important. With RS485 readers, you can reduce the cost of control panel and make the control much more accurate. RS485 Reader Series let you connect multiple readers to the control panel in one single RS485 port, which can enlarge the control panel card reader capacity. Also, RS485 has excellent transfer rate that allows long-distance transfer up to 1200m (theoretical value). Therefore, RS485 reader are perfect tool for multiple access solutions in scalable area.
| Read Range |
KRxxx-E: Up to 10CM KRxxx-M: Up to 5CM |
|---|---|
| Reading Time | ≤ 200ms |
| Input Port |
External LED Control External Buzzer Control |
| Supported Panel | InBio160, InBio260, InBio460 |
| Power Supply | DC 6–14V / Max. 70mA |
| Operating Humidity | 10% – 90% RH (Non-condensing) |
| Material | ABS + PC with texture |
| Beeper | Yes |
| LED | Red and Green LEDs |
| Ingress Protection Rating | KR100M-RS: IP65 |
| Output Format | RS485 |
| Operating Temperature | -20°C to 65°C (-10° to +70°C) |
FR1300 is an indoor slave reader with RS485 interface that works with master controllers from ZKTeco, for example, inBIO series biometric control panels. As a value-added slave reader, FR1300 provides the most secure and cost effective access control solution for small and medium enterprises.
The TLEB-R Series of exit buttons uses infrared induction technology. The exit button is activated with simple hand waving. Users could unlock the door with a remote key RM-100 as well. The remote’s sensing range is up to 10 meters.
InBio160 carries out the macthing of fingerprints on panels. The FR Series of readers transmit fingerprint templates to InBio160 via RS-485 for fast and accurate matching with templates stored in a data-base. In this bundle, the POE splitter can offer12V 2A DC for both InBio160 and one 12V DC lock. On the input side, just need connect the splitter to a POE switch.
F35 from ZKTeco is a standalone access control terminal featuring a video intercom function. F35 adopts in-glass fingerprint verification, offering secure biometric authentication without a dedicated button. F35 also supports multiple tech card modules for verification, and it can be a time and attendance terminal when integrated with the ZKBioTime software. Also, one of the notable features of the F35 is that it has a 2.4-inch color monitor, a 2MP camera, a built-in microphone, and speakers for one-way video intercom via indoor monitor with SIP protocol. F35 supports the ONVIF protocol; its firmware has AC push and can convert to TA push. The aluminium alloy frame of the F35 offers robust protection, and it attained an IP65 protection rating, guaranteeing that this terminal operates in adverse weather.
