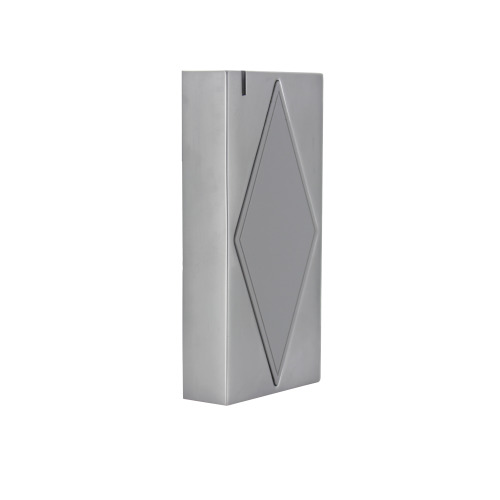

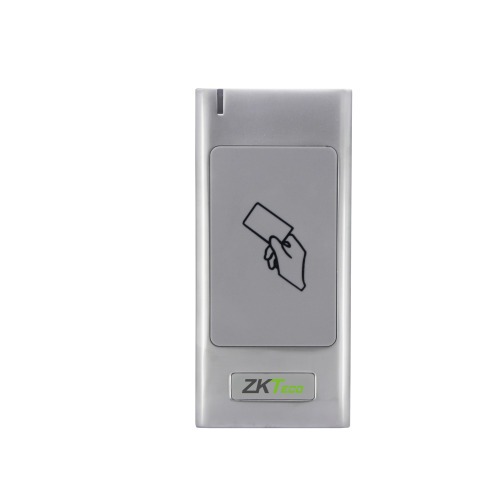

MR1010 and MR1020 are advanced access control readers with 125kHz & 13.56MHz RFID technology, respectively. It’s an ideal choice for high-security appliacations. They are attractively designed to withstand harsh environments – to operate outside (IP66) and to offer a high vandal proof resistance (IK10).
| Model | MR100 / MR101 |
|---|---|
| Operating Voltage |
MR100: 9-18V DC MR101: 9-24V DC |
| Operating Current |
MR100: ≤ 25mA MR101: ≤ 35mA |
| Card Frequency | 125KHz / 13.56MHz |
| Card Reading Distance | 3 ~ 8cm |
| Wiegand Output | 26 / 34 bits |
| Operating Temperature | -40°C ~ 60°C |
| Dimension | 103 × 48 × 19 mm |
| Operating Humidity | 10% ~ 85% |
| Weight | 300g |
| Ingress Protection Rating | IP66 |
| Wire Length | 45mm ± 10mm |
State-of-the-art 1, 2 and 4 door access control panels with built-in Web Application eliminate the need for management software
EB101 is a new mechanical exit button. It is made of stainless steel. It has small size, exquisite appearance, economical application and high cost performance. It is widely used in access control, electronic access control systems and other fields.
FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.
ZKTeco’s C3 Plus series is an IP-based controller offering RFID cards and dynamic QR code authentication for access control solutions. The C3 Plus series includes three models: C3-100 Plus, C3-200 Plus, and C3-400 Plus. This series is designed for small—to medium-sized enterprises and can handle up to 100,000 multi-tech card users and 100,000 dynamic QR code transactions. The C3 Plus series has RS-485 interfaces, which ZKTeco’s RS-485 protocols and OSDP (Ver 2.1.7) for accessing card readers. It is also compatible with ZKTeco’s QR code reader, including QR50, QR500, and QR600. C3 Plus series is highly versatile, with the Wiegand interface (Wiegand format: W26/W34/W66) for seamless integration with third-party access control readers. The C3 Plus Series levels up data storage encryption by AES 256-bit algorithm. Also, C3 Plus Series adopts the AES 128-bit algorithm encryption to ensure the communication between controller, readers and I/O expansion boards secure. Also, the C3 Plus Series support HTTPS / TLS1.2 protects communications between the server and the web client.
