MB560-VL

MB560-VL

Call for Price

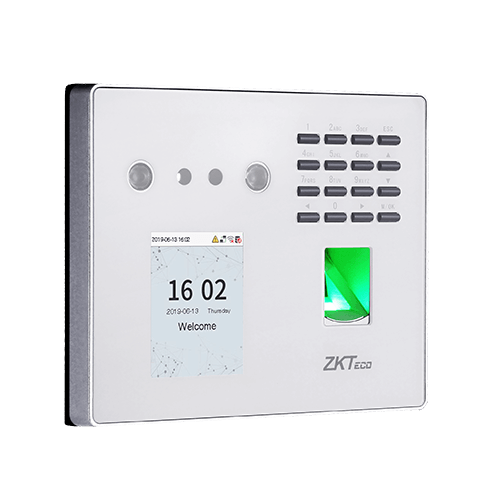

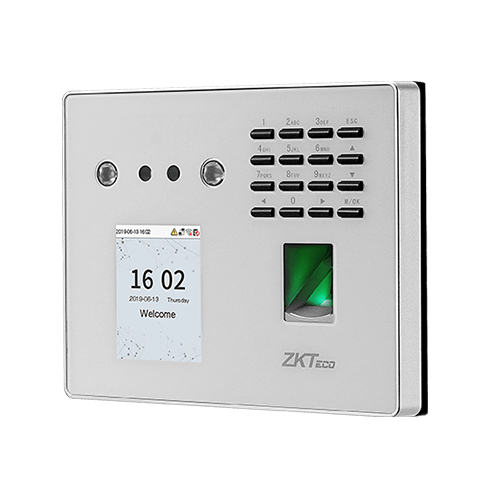

MB560-VL is a multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. With the latest algorithm and facial recognition related technologies, the device can perform recognition of a target in a distance from 0.3m to 2m and will function automatically when it detects a face in the detection distance so as to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminal. With the applied Deep Learning algorithm, pose angle tolerance and anti-spoofing have been greatly enhanced against dynamic environment and various spoofing attacks. Apart from all these, together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules and additional support in WiFi, MB560-VL must be a best fit in various working environments satisfying different customer’s needs.

Display	2.8-inch TFT Screen
Face Capacity	3,000 (Optional: 5,000)
Fingerprint Capacity	3,000 (Optional: 5,000)
Card Capacity	10,000 (Optional)
Transaction Capacity	100,000 (Optional: 200,000)
Communication	TCP/IP, WiFi (Optional), USB Host
Standard Functions	ADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Photo ID, Masks Detection, Camera, 14-digit User ID, Multiple Verify Modes, Schedule Bell
Hardware	900MHz Dual Core CPU; Memory 512MB RAM / 8GB ROM; 2MP WDR Low Light Camera; Adjustable LED Supplement Lighting
Operation System	Linux
Interfaces of Access Control	3rd Party Electric Lock, Door Sensor, Exit Button
Optional Functions	125KHz ID Card (EM) / 13.56MHz IC Card
Biometrics Algorithms	ZKFace V5.8 & ZKFinger V10.0
Facial Recognition Speed	≤1s
Power Supply	12V 1.5A
Operating Humidity	20% – 80%
Operating Temperature	0 °C – 45 °C
Dimension	170 × 138 × 38.55 mm (W × H × D)
Supported Software	ZKBio Time

Name	Size	Update Time	Download
MB560-VL Datasheet	898.06KB	2023-04-17	Download
2.8-inch Linux Visible Light Product Quick Start Guide V1.0-20190830	1.36MB	2020-03-09	Download
2.8-inch Linux Visible Light Product User Manual-V1.0-20190622(1)	980.04KB	2020-03-09	Download
