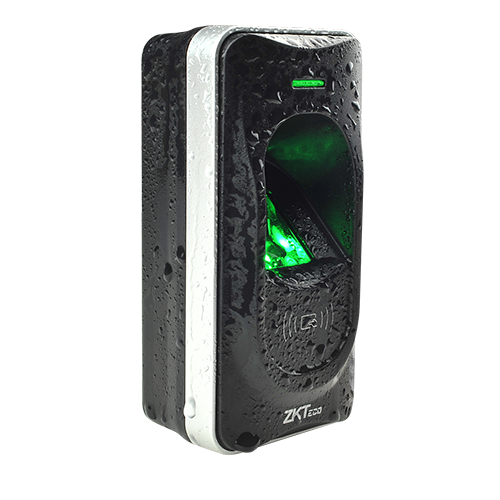

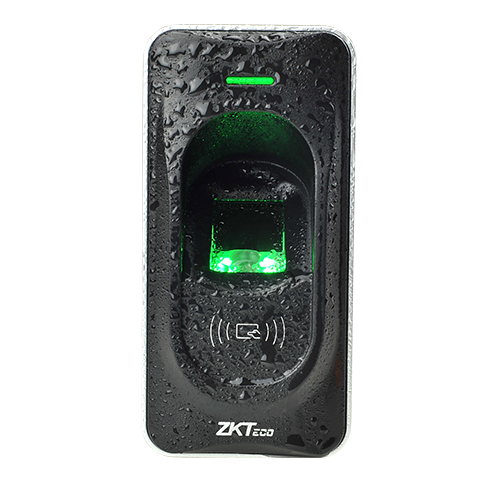

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.
| Sensor | ZK small-sized sensor |
|---|---|
| Communication | RS485 |
| Standard Functions | ID Card Module |
| Optional Functions | IC Card Module |
| Voice Prompt | Buzzer |
| Power Supply | 12V DC |
| Operating Temperature | 0°C ~ 45°C |
| Ingress Protection Rating | IP65 |
| Dimension | 102 x 50 x 37mm (H*W*D) |
SenseFace 7 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. SenseFace 7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 7 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
RS485 is currently a widely used communication interface in data acquisition and control applications where multiple nodes communicate with each other. RS485 is also the most versatile communcation standard in the standard series defined by the EIA. In circumstances which require to use multiple readers, RS485 communication shows how it is important. With RS485 readers, you can reduce the cost of control panel and make the control much more accurate. RS485 Reader Series let you connect multiple readers to the control panel in one single RS485 port, which can enlarge the control panel card reader capacity. Also, RS485 has excellent transfer rate that allows long-distance transfer up to 1200m (theoretical value). Therefore, RS485 reader are perfect tool for multiple access solutions in scalable area.
Wiegand Card Readers 125kHz EM or 13.56MHz IC card reader Wiegand interface.
MR1010 and MR1020 are advanced access control readers with 125kHz & 13.56MHz RFID technology, respectively. It’s an ideal choice for high-security appliacations. They are attractively designed to withstand harsh environments – to operate outside (IP66) and to offer a high vandal proof resistance (IK10).
