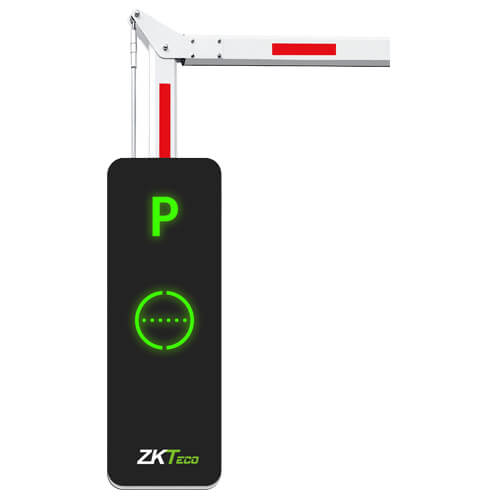

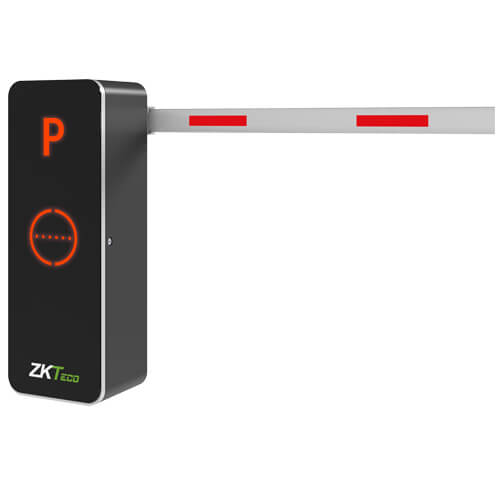

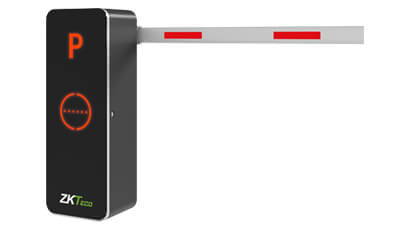

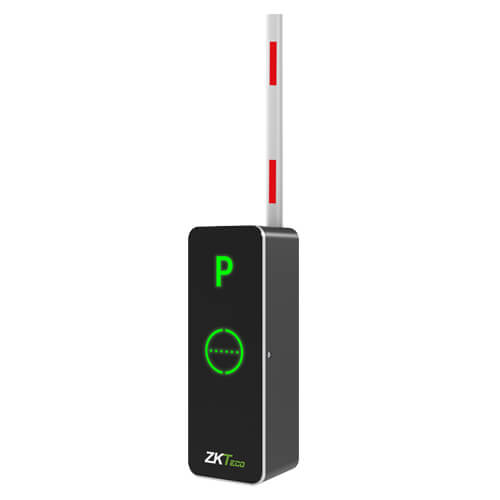

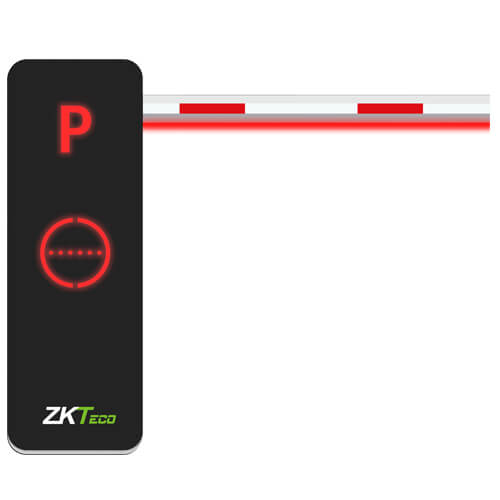

The BGM1000 Series of barrier gates adopts ZKTeco’s interactive LED chassis design, programmable control panel, high-efficiency Brushless DC motor, and SCM421 material gear transmission structure. It has the advantages of fast speed, stable quality, rich function expansion, and so on. It is a much comprehensive barrier gate.
| Dimensions | 350 × 280 × 1000 (mm) |
|---|---|
| Motor Type | DC 24V Brushless Motor |
| Motor MCBF | 3 Million Times |
| Output Power | 120 W |
| Rated Current | 6 A |
| Power Supply | AC 220V, 50Hz / AC 110V, 60Hz |
| Remote Control Distance | ≤ 30 m |
| Operating Temperature | -35°C to 70°C |
| Operating Humidity | < 90% |
| Weight | 45 kg |
RS485 is currently a widely used communication interface in data acquisition and control applications where multiple nodes communicate with each other. RS485 is also the most versatile communcation standard in the standard series defined by the EIA. In circumstances which require to use multiple readers, RS485 communication shows how it is important. With RS485 readers, you can reduce the cost of control panel and make the control much more accurate. RS485 Reader Series let you connect multiple readers to the control panel in one single RS485 port, which can enlarge the control panel card reader capacity. Also, RS485 has excellent transfer rate that allows long-distance transfer up to 1200m (theoretical value). Therefore, RS485 reader are perfect tool for multiple access solutions in scalable area.
InBio160 carries out the macthing of fingerprints on panels. The FR Series of readers transmit fingerprint templates to InBio160 via RS-485 for fast and accurate matching with templates stored in a data-base. In this bundle, the POE splitter can offer12V 2A DC for both InBio160 and one 12V DC lock. On the input side, just need connect the splitter to a POE switch.
FR1300 is an indoor slave reader with RS485 interface that works with master controllers from ZKTeco, for example, inBIO series biometric control panels. As a value-added slave reader, FR1300 provides the most secure and cost effective access control solution for small and medium enterprises.
ZKTeco developed PA22 with Computer Vision Technology that included 3-in-1 contactless palm recognition. This contactless palm recognition terminal, powered by ARMATURA, can perform biometric authentication with a user’s palm vein, palm print, and the shape of palm at the same time once the sensor detects a hand presented.
Multivision Technologies has been delivering innovative security and surveillance solutions since 2009. With a strong technical foundation and a customer-focused approach, we provide tailored solutions designed to meet the unique needs of every client.
